Stainless Steel 347 Pipe Fittings

Schedule 80 SS 347 Eccentric Reducer Supplier in India, Get ASTM A403 WP 347 45 Deg Elbow in 1/2 inch

Among the various grades that stainless steel is divided into there is a grade of austenitic steel containing columbium. The fittings made from it are known as Stainless Steel 347 Pipe Fittings. They are widely used at elevated temperatures and have amazing forming and welding qualities. The addition of columbium to Stainless steel 347 Weld fittings offers resistance to intergranular corrosion. It also displays improved resistance to corrosion in a strongly oxidizing environment. They are widely used to mount, connect, and configure other products.

Stainless Steel 347 Pipe Fittings

Schedule 80 SS 347 Eccentric Reducer

ASTM A403 WP 347 45 Deg Elbow

Check ASTM A403 Gr WP 347 Socket weld Fittings Weight Chart, Manufacturer of Stainless Steel 347 Pipe Cap in India

Stainless Steel 347 Pipe Fittings offer stress to rupture and high creep properties. They can be welded using regular fusion and sensitization approaches. But oxyacetylene welding is not advised for these ASTM A403 WP 347 90 degree Elbows. After exposure to the temperature in the chromium carbide precipitation range from 427 degrees C to 816 degrees C. They display resistance to intergranular corrosion. Stainless steel 347H Lateral Tee is stabilized in contradiction of chromium carbide precipitation by the addition of tantalum.

Most of the main features in the UNS S34700 Concentric Reducer are due to the addition of columbium. It is ideally non-magnetic in the annealed condition and can be hardened only by cold working. DIN 1.4550 Stainless steel Pipe Bend is used in furnace parts, boilers, pressure tanks and vessels, and heat exchanger tubes. Moreover, A403 WP347H Stub End is also used in pulp and paper industries, oil and petrochemical industries, and chemical processing equipment used at high temperatures. They are available in a variety of types such as tubes, tees, stubs, reducers, and end caps and are durable.

Stainless Steel 347 Pipe Fittings

View Stainless steel 347H Buttweld fittings Dimenison Table, View Werkstoff 1.4550 Reducing Tee Equivalents

Specification List of Stainless Steel 347 Pipe Fittings

Specifications ASTM A403
Thickness Suppliers in SCH 80, SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 120, SCH 140, SCH 100,SCH 160, XXS available with NACE MR 01-75
size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Type DN15-DN1200
Dimensions MSS-SP-43, ASME/ANSI B16.9, ASME B16.28, BS4504, BS1560, BS4504, BS10
Bending Radius R=3D, 1D, 2D, 6D, 8D, 5D, 10D
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection Welding
Manufacturing process Cast, Forge, Push, Press, etc.
Origin & Mills Japanese, Indian, Korean, European, Ukraine, USA, Russian
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of Crosses, 90º Elbows, Tees, 45º Elbows, Reducers, Stub End, Pipe Cap, Pipe Bend suppliers

Chemical Formula of ASTM A403 WP 347 45 Deg Elbow

Grade C Mn Si P S Cr Cb Ni Fe
SS 347 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 20.00 10xC – 1.10 9.00 - 13.00 62.74 min
SS 347H 0.04 – 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 8xC – 1.10 9.0 -13.0 63.72 min
We provide Minimum Quantity of UNS S34700 Stainless steel Threaded Fittings, Check ASTM A403 WP347H Elbow Size Chart

Schedule 80 SS 347 Eccentric Reducer Mechanical Behaviour

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1454 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

A403 WP347H Stub End Equivalent Grade

STANDARD WERKSTOFF NR. UNS JIS GOST EN
Stainless Steel 347 1.4550 S34700 SUS 347 08Ch18N12B X6CrNiNb18-10
Stainless Steel 347H 1.4961 S34709 SUS 347H - X6CrNiNb18-12

Weight Chart of SS 347 Weld fittings

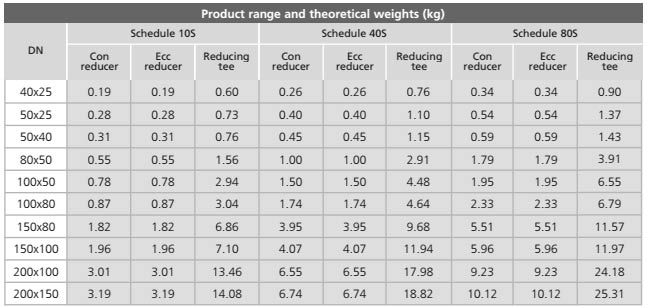

Weight Chart of ASME B16.9 SS 347 Fitting

We Stock ASTM A403 WP 347 Pipe fittings in 48" NB, Provide SS 347H Short Radius Elbow in 90 Degree, Know 347 Stainless Steel Return Bends Elongation

Various Types of Stainless Steel 347 Pipe Fittings

ASTM A403 WP 347 90 degree Elbow

ASTM A403 WP 347 90 degree Elbow

DIN 1.4550 Stainless steel Pipe Bend

DIN 1.4550 Stainless steel Pipe Bend

UNS S34700 Concentric Reducer

UNS S34700 Concentric Reducer

A403 WP347H Stub End

A403 WP347H Stub End

Stainless steel 347H Lateral Tee

Stainless steel 347H Lateral Tee

Werkstoff 1.4550 Reducing Tee

Werkstoff 1.4550 Reducing Tee

Stainless steel 347 Weld fittings

Stainless steel 347 Weld fittings

Stainless Steel 347 Pipe Cap

Stainless Steel 347 Pipe Cap

ASTM A403 WP 347 Pipe fittings

ASTM A403 WP 347 Pipe fittings

ASME B16.11 SS 347 Threaded Fittings

ASME B16.11 SS 347 Threaded Fittings

A403 Gr WP347 Pipe Cap Fittings

A403 Gr WP347 Pipe Cap Fittings

Stainless Steel Grade 347 Union

Stainless Steel Grade 347 Union

Thickness Chart of SS 347 SR Elbow

N.P.S. 90 Deg. Elbows 45 Deg. Elbows 180 Deg. Return Bends Tees Lap Joint Stub End Caps
LR 3R SR 3R LR LR LR M C F R G E
A A A B B K O O K
½ 1.50 - - - 0.62 1.88 3.00 - - 1.00 1.00 3.00 0.12 1.38 1.00
¾ 1.50 - - - 0.75 2.00 3.00 - - 1.12 1.12 3.00 0.12 1.69 1.00
1 1.50 - 1.00 - 0.88 2.19 3.00 2.00 1.62 1.50 1.50 4.00 0.12 2.00 1.50
1.88 - 1.25 - 1.00 2.75 3.75 2.50 2.06 1.88 1.88 4.00 0.19 2.50 1.50
2.25 - 1.50 - 1.12 3.25 4.50 3.00 2.44 2.25 2.25 4.00 0.25 2.88 1.50
2 3.00 6.00 2.00 2.50 1.38 4.19 6.00 4.00 3.19 2.50 2.50 6.00 0.31 3.62 1.50
3.75 7.50 2.50 3.12 1.75 5.19 7.50 5.00 3.94 3.00 3.00 6.00 0.31 4.12 1.50
3 4.50 9.00 3.00 3.75 2.00 6.25 9.00 6.00 4.75 3.38 3.38 6.00 0.38 5.00 2.00
5.25 10.50 3.50 - 2.25 7.25 10.50 7.00 5.50 3.75 3.75 6.00 0.38 5.50 2.50
4 6.00 12.00 4.00 5.00 2.50 8.25 12.00 8.00 6.25 4.12 4.12 6.00 0.44 6.19 2.50
5 7.50 15.00 5.00 - 3.12 10.31 15.00 10.00 7.75 4.88 4.88 8.00 0.44 7.31 3.00
6 9.00 18.00 6.00 7.44 3.75 12.31 18.00 12.00 9.31 5.62 5.62 8.00 0.50 8.50 3.50
8 12.00 24.00 8.00 9.94 5.00 16.31 24.00 16.00 12.31 7.00 7.00 8.00 0.50 10.62 4.00
10 15.00 30.00 10.00 12.44 6.25 20.38 30.00 20.00 15.38 8.50 8.50 10.00 0.50 12.75 5.00
12 18.00 36.00 12.00 14.88 7.50 24.38 36.00 24.00 18.38 10.00 10.00 10.00 0.50 15.00 6.00
14 21.00 42.00 14.00 17.38 8.75 28.00 42.00 28.00 21.00 11.00 11.00 12.00 0.50 16.25 6.50
16 24.00 48.00 16.00 19.88 10.00 32.00 48.00 32.00 24.00 12.00 12.00 12.00 0.50 18.50 7.00
18 27.00 54.00 18.00 22.38 11.25 36.00 54.00 36.00 27.00 13.50 13.50 12.00 0.5 21.00 8.00
20 30.00 60.00 20.00 24.88 12.50 40.00 60.00 40.00 30.00 15.00 15.00 12.00 0.50 23.00 9.00
22 33.00 66.00 22.00 27.31 13.50 44.00 66.00 44.00 33.00 16.50 16.50 12.00 0.50 25.25 10.00
24 36.00 72.00 24.00 29.81 15.00 48.00 72.00 48.00 36.00 17.00 17.00 12.00 0.50 27.25 10.50
26 39.00 78.00 - 32.31 16.00 - - - - 19.50 19.50 - - - 10.50
28 42.00 84.00 - 34.75 17.25 - - - - 20.50 20.50 - - - 10.50
30 45.00 90.00 - 37.25 18.50 - - - - 22.00 22.00 - - - 10.50
32 48.00 - - - 19.75 - - - - 23.50 23.50 - - - 10.50
34 51.00 102.00 - 42.25 21.00 - - - - 25.00 25.00 - - - 10.50
36 54.00 108.00 - 44.69 22.25 - - - - 26.50 26.50 - - - 10.50
38 57.00 114.00 - 47.25 23.62 - - - - 28.00 28.00 - - - 12.00
40 60.00 120.00 - 49.75 24.88 - - - - 29.50 29.50 - - - 12.00
42 63.00 126.00 - 52.19 26.00 - - - - 28.00 30.00 - - - 12.00
44 66.00 132.00 - 54.69 27.38 - - - - 30.00 32.00 - - - 13.50
46 69.00 138.00 - 57.19 28.62 - - - - 31.50 33.50 - - - 13.50
48 72.00 144.00 - 59.69 29.88 - - - - 33.00 35.00 - - - 13.50

Markings on ASTM A403 Gr WP 347 Buttweld Pipe Fittings

  • Material Designation
  • "WP" in grade symbol
  • Schedule no. or minimal wall thickness
  • Rating Designation
  • Manufacturer’s Symbol or Name
  • Grade
  • Heat Code

347 Stainless Steel Fittings Cost Chart

Product Price
SW Cap D.3/4 S 6000 A182 F347h (Stainless Steel Pipe Fittings) $55.16/ Piece
Cap DN 150 X 10.97 (Cap 6 Inch Nps Sch 80s, WP-s 347h) Sa 403 Wo 347h (Stainless Steel Fittings) $14.12/ Piece
SS ASTM A403 WP347 Concentric Reducer, Size : 3 Nps X 2 Nps X Sch, Bw Nace Mr-0175 $394.73/ Piece
Sw Half Coupling D.1.1/2 S 6000 A 182 F347H $216.97/ Piece

Choose us for the best price of Stainless Steel 347H Short Radius Elbow in India, Many UNS S34709 Forged Fittings suppliers, exporters, importers, wholesalers, retailers, stockists, stockholders, distributors, and dealers Find your sizes in our stock of 347H Stainless Steel Seamless Pipe Elbow in Mumbai, Contact for a Quick Quote!

Weight Chart of ASTM A403 Grade WP347 End Cap

Weight Chart of ASTM A403 Grade WP347 End Cap

Stainless Steel 347 90 Degree Elbow Standard Dimensions

Stainless Steel 347 90 Degree Elbow Standard Dimensions

Suppliers of 347 Stainless Bends with Value Added Services

  • Annealed
  • Forging
  • Pickling
  • Polish (Electro & Commercial)
  • Bending
  • Heat Treatment
  • Rolling

Stainless Steel 347 Long Radius Elbow Dimensions

Nominal
Pipe
Size
Outside
Diameter
90° Elbows 45° Elbows 180° Returns
(inches)
Long Radius
Short Radius
Long Radius
Long Radius
(mm)
(inches)
Center to Face
(inches)
Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Center
(inches)
Back to face
(inches)
1/2
21.3
0.840
1 1/2
5/8
2
1 7/8
3/4
26.7
1.050
1 1/8
7/16
2 1/4
1 11/16
1
33.4
1.315
1 1/2
1
7/8
3
2 3/16
1 1/4
42.2
1.660
1 7/8
1 1/4
1
3 3/4
2 3/4
1 1/2
48.3
1.900
2 1/4
1 1/2
1 1/8
3
4 1/2
3 1/4
2
60.3
2.375
3
2
1 3/8
4
6
4 3/16
2 1/2
73.0
2.875
3 3/4
2 1/2
1 3/4
5
7 1/2
5 3/16
3
88.9
3.500
4 1/2
3
2
6
9
6 1/4
3 1/2
101.6
4.000
5 1/4
3 1/2
2 1/4
7
10 1/2
7 1/4
4
114.3
4.500
6
4
2 1/2
8
12
8 1/4
5
141.3
5.563
7 1/2
5
3 1/8
10
15
10 5/16
6
168.3
6.625
9
6
3 3/4
12
18
12 5/16
8
219.1
8.625
12
8
5
12
24
16 5/16
10
273.1
10.750
15
10
6 1/4
15
30
20 3/8
12
323.9
12.750
18
12
7 1/2
18
36
24 3/8

ASTM A403 WP347 Buttweld Fittings Features

  • Malleable
  • Great strength
  • Durable functioning
  • Corrosion resistant
  • Impeccable finish
  • Heat resistance
  • Excellent conductivity

UNS S34700 Stainless Steel Stub End Size Chart

Minimal
Sizes
Outer
Diam.
Caps Straight Tee Straight Crosses Stub Ends
(in) (mm) (in) Length
(in)
Center to End
(in)
Center to End
(in)
Lap Diameter
(in)
Long Length
(in)
Short Length
(in)
1/2 21.3 0.840 1 1 1 3/8 3 2
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
3/4 26.7 1.050 1 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
8 219.1 8.625 4 7 7 10 5/8 8 4
12 323.9 12.750 6 10 10 15 10 6
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5

Size and Dimension of Stainless Steel 347 Threaded Pipe Fittings

DN-NPT Major Diam.
(MM)
Tapping
Drill Size (MM)
TPI PITCH
MM
1/16″ 7.895 6.00 27 0.941
1/8″ 10.242 8.25 27 0.941
1/4″ 13.616 10.70 18 1.411
3/8″ 17.055 14.10 18 1.411
1/2″ 21.223 17.40 14 1.814
3/4″ 26.568 22.60 14 1.814
1″ 33.228 28.50 11.5 2.209
1¼” 41.985 37.00 11.5 2.209
1½” 48.054 43.50 11.5 2.209
2″ 60.092 55.00 11.5 2.209
2½” 72.699 65.50 8 3.175
3″ 88.608 81.50 8 3.175
3½” 101.316 94.30 8 3.175
4″ 113.973 107.00 8 3.175
5″ 141.300 134.384 8 3.175
6″ 168.275 161.191 8 3.175
8″ 219.075 211.673 8 3.175
10″ 273.050 265.311 8 3.175
12″ 323.850 315.793 8 3.175

Application of ASTM A403 WP 347 Pipe Fittings

  • Power plants
  • Water waste projects
  • Oil and gas
  • Fluid piping
  • Modern architecture
  • Heat exchanger

Werkstoffnummer 1.4550 Stainless Steel Concentric Reducer Sizes

Minimal
Pipe Size
Outer
Diam.
Reducers
Reduced from
(inches)
(mm) (inches) Reduced to
(inches)
Concentric & Eccentric Length
(inches)
1/2 21.3 0.840 3/8 1 1/2
1/4 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 33.4 1.315 3/8 2
3/4 2
1/2 2
1 1/4 42.2 1.660 1/2 2
1 2
3/4 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 1/4 2 1/2
1 2 1/2
2 60.3 2.375 3/4 3
1 1/4 3
1 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/2 3 1/2
1 1/4 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
2 3 1/2
1 1/2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
2 4
1 1/2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 1/2 4
3 1/2 4
2 4
3 4
5 141.3 5.563 2 5
3 5
4 5
2 1/2 5
3 1/2 5
6 168.3 6.625 2 1/2 5 1/2
5 5 1/2
3 1/2 5 1/2
3 5 1/2
4 5 1/2
8 219.1 8.625 3 6
6 6
4 6
3 1/2 6
5 6
10 273.1 10.750 4 7
6 7
5 7
8 7
12 323.9 12.750 5 8
8 8
6 8
10 8

Size Table of 347 Stainless Steel Socket Weld Fittings

Description Class Designation
3000 6000 9000
90 and 45 degree Elbow,
Crosses, Pipe Tee, Forged Couplings,
Half-Couplings,
End or Pipe Caps
1/2 - 4 1/2 - 2 1/2 - 2
1/2 - 4 1/2 - 2 1/2 - 2
1/2 - 4 1/2 - 2 1/2 - 2
Pipe Size
by Wall Thickness
SCH 80 & XS SCH 160 XXS
